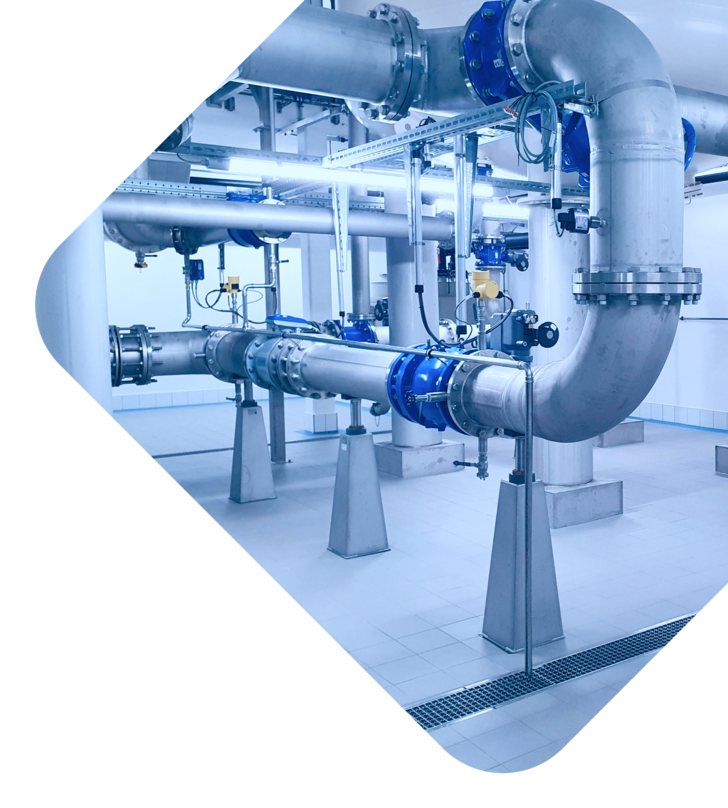

Securely support, align, and mount piping
In plant engineering, piping must not only be supported but also precisely aligned and securely fastened in a stable manner.
Simple pipe clamps quickly reach their limits, especially with larger nominal diameters and varying installation heights. Pipe supports offer a technically sound solution in these cases:
They enable secure support, precise height adjustment, and reliable load distribution—even under demanding conditions.

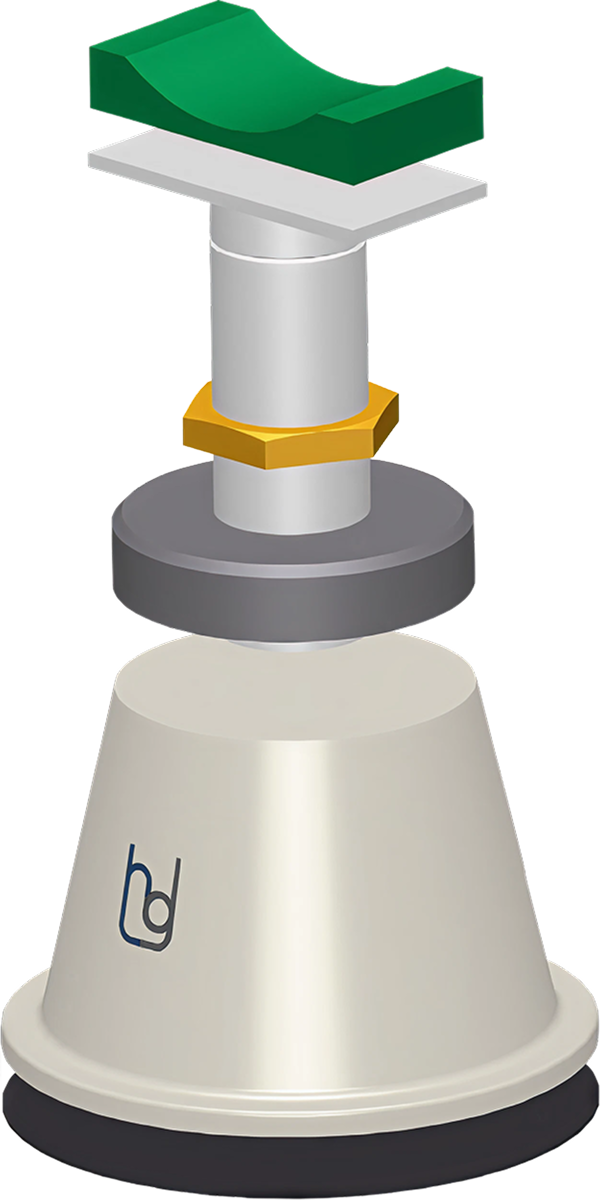

Pipe support (polypropylene)
A polypropylene pipe support is a lightweight, durable, and chemically resistant support that protects and stabilizes pipes.
It ensures even load distribution while dampening noise and vibrations in fittings, thereby extending their service life.

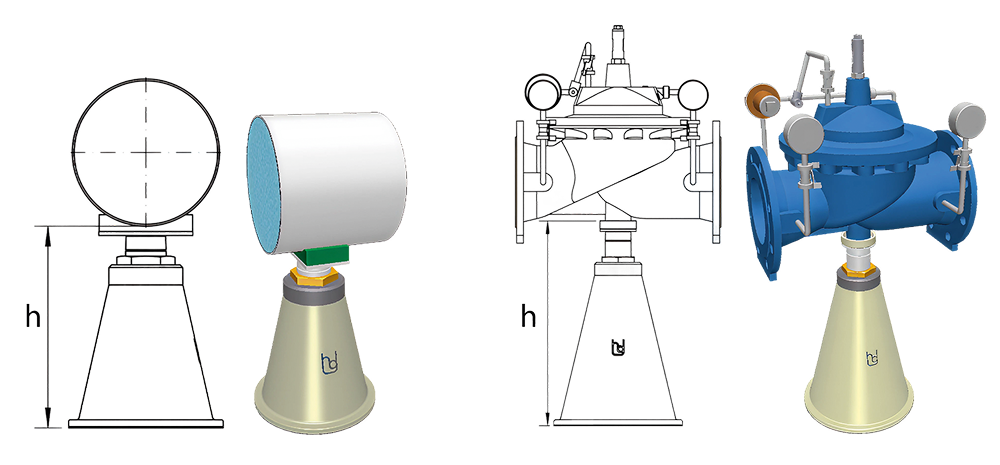

Supports for pipes are designed as half-shells, while supports for fittings are designed as plates.
Load cell (stainless steel)
A stainless steel load-bearing support is a heavy-duty fastener that safely absorbs, distributes, and transfers the weight forces from piping and fittings to the supporting structure in a controlled manner—thereby ensuring the stability and safety of the entire piping system.
Adjusting nut (red brass)
A red brass adjusting nut is a corrosion-resistant adjustment element used in piping systems for the precise height and position adjustment of pipe and fitting supports.
This allows for fine-tuning during installation, including to compensate for manufacturing tolerances.
Adapter (PVC/Aluminum*)
An adapter is a connecting element that serves as a spacer, connector, or transition piece, combining mechanical stability with material separation.
Standard version: PVC
Custom version: Aluminum
*Custom version
Base body (PVC, die-cast aluminum, stainless steel)
The base unit is the load-bearing foundation of a pipe and fitting support. You can think of it as the “foundation of the mounting bracket.”
PVC base unit | for heights of 100 mm to 225 mm
Die-cast aluminum base unit | for heights of 225 mm to 750 mm
Stainless steel base unit | for heights greater than 750 mm
Elastic sleeve (EPDM, Perbunan)
An elastic sleeve is a flexible damping and sealing element that reduces vibrations and compensates for movement.
EPDM (ethylene-propylene-diene rubber)
Perbunan (NBR – nitrile rubber)
PVC base body: Perbunan
Die-cast aluminum base body: EPDM
Stainless steel base body: Perbunan

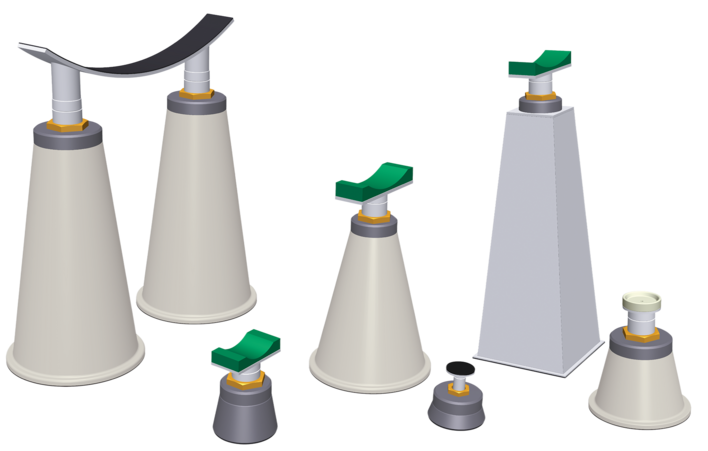

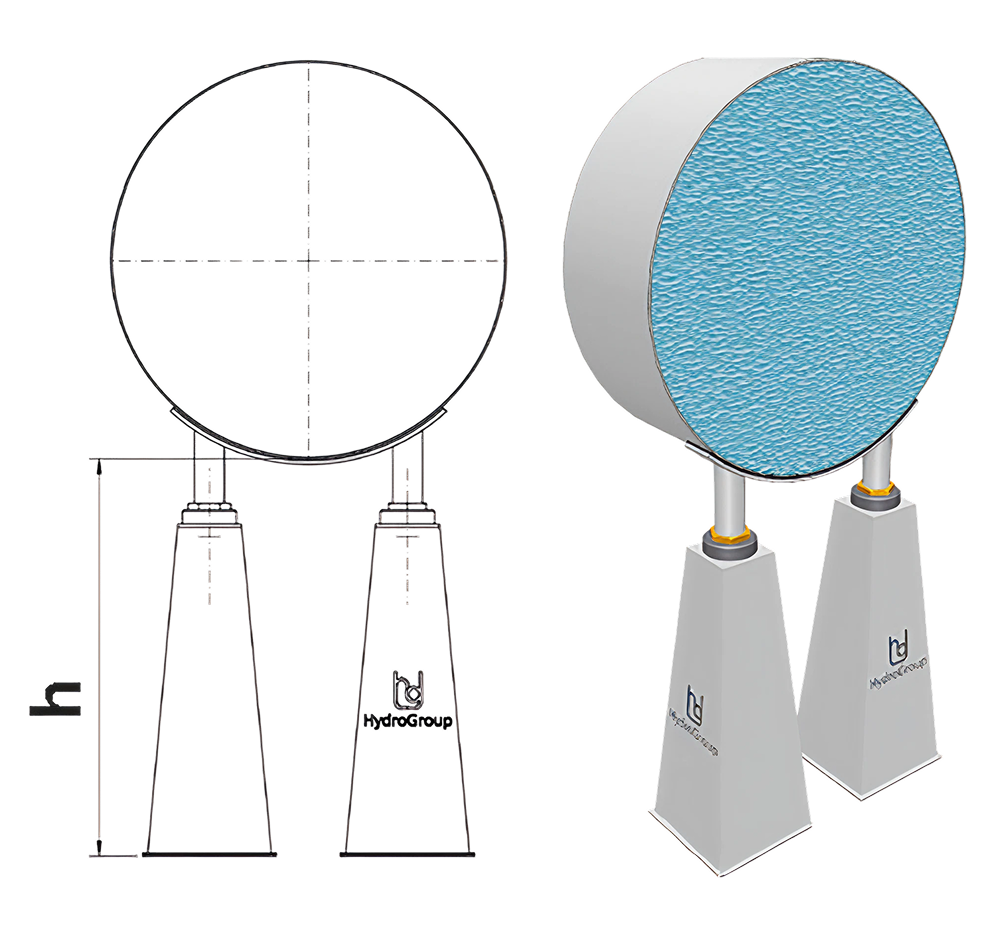

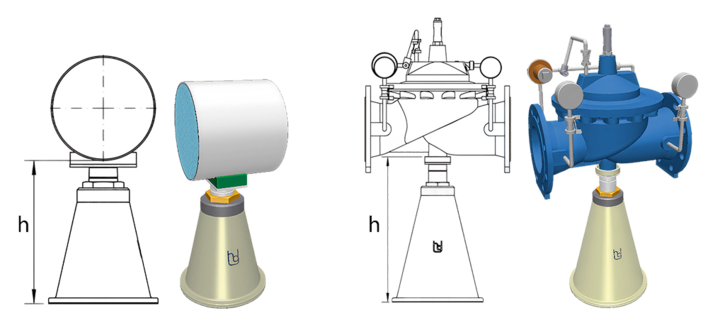

What types of pipe supports are available for different heights and pipe diameters?
Depending on the load-bearing capacity, the base bodies are made of PVC, aluminum, or stainless steel. Choose between highly corrosion-resistant PVC/aluminum or solid stainless steel versions. Our modular system covers nominal diameters from DN 80 to DN 1300 and can be precisely tailored to your structural requirements and space constraints.

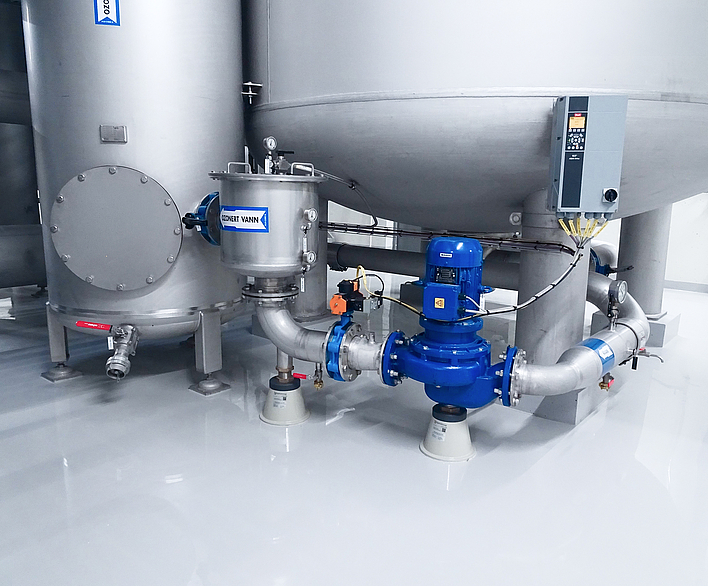

Pipe supports for demanding applications in plant engineering
For decades, HydroGroup® has been developing and manufacturing components for use in water management and industrial plant engineering.
Our pipe supports are designed to withstand heavy loads, ensure precise alignment, and provide long-term, stable support.
Precision without compromise
Each pipe support is designed to reliably withstand operational demands—from material selection to final construction.
The result is durable solutions for use in demanding conditions.
Certified Safety
Manufacturing and quality assurance are carried out in accordance with established standards, ensuring a reliable design.
Designed for continuous loading

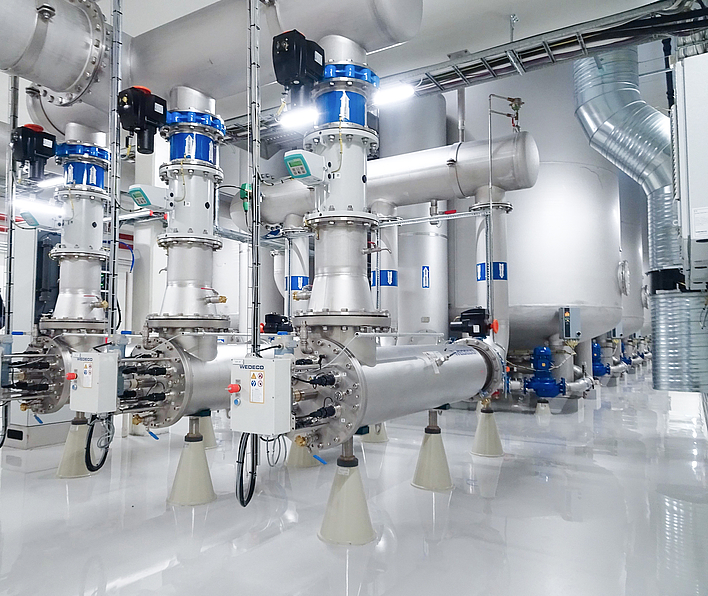

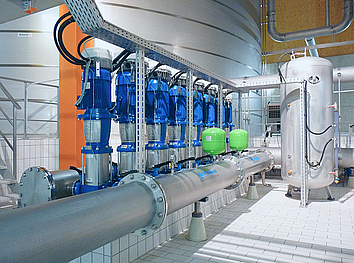

Pipe supports are designed for long-term use in water and wastewater treatment facilities.
