Pipe supports

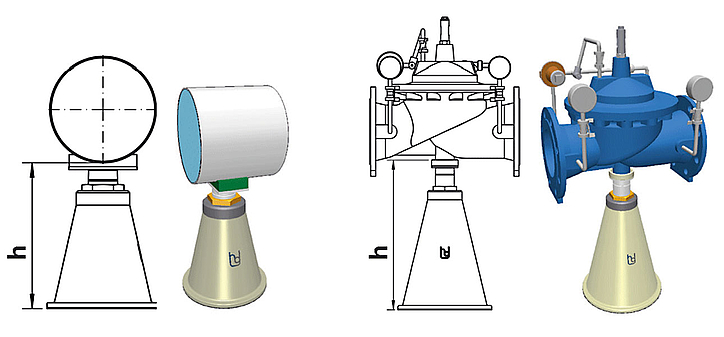

The compact pipe and valve supports enable fast and easy installation. Thanks to their height-adjustable design under load, pipes and system components can be precisely aligned and installed with significant time savings.

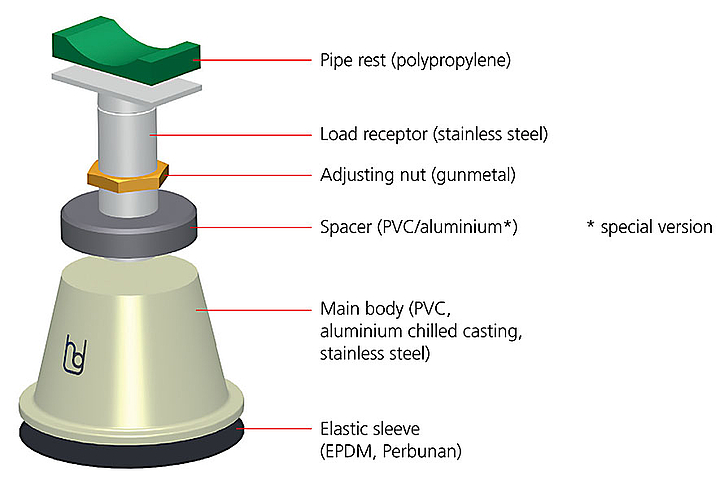

The conical base body made of PVC, aluminium or stainless steel, featuring a reinforced base collar and elastic support pad, ensures high stability and optimal load distribution.
The materials are perfectly suited to the requirements of the water sector and industry.

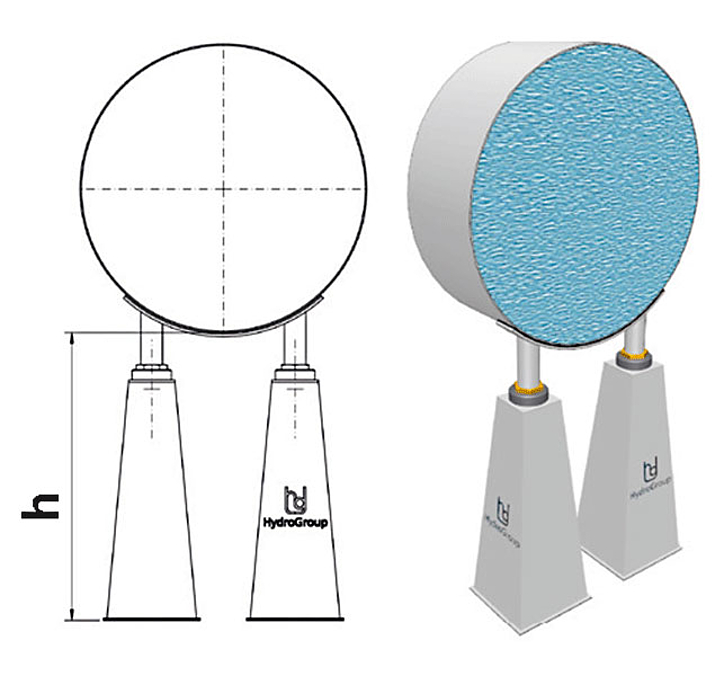

The heights to be supported can range from 100 mm to 1350 mm, for nominal diameters from DN 80 to DN 1300.
Models
The different models have different main bodies:
- RFS1 and RFS 2 with heights from 100 to 225 mm, main body made of PVC
- RFN, RFA, RFB, RFC with heights from 225 to 750 mm, main body made of die-cast aluminum
- RFE with heights from 750 to 1350 mm, main body made of stainless steel
- Custom heights and custom designs, main body in a custom construction made of stainless steel
